Buffer Tanks
General Description

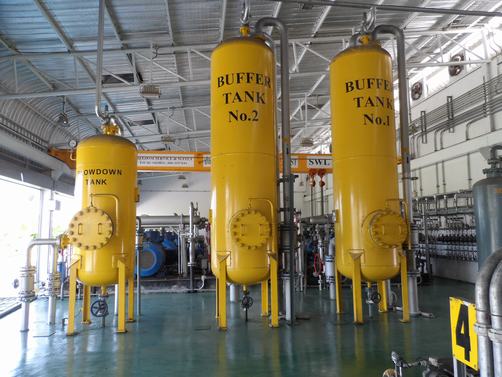

The natural gas pressure in the pipeline of CNG station is usually fluctuating in a certain range, while the pressure-fluctuating gas may affect the lifetime of compressor’s accessories including inlet and outlet valve. Therefore, it is really necessary to adopt a pressure buffer tank to make the natural gas in a stable condition before it is sent into the compressor and dehydration equipments. The volume of buffer tank is about 2m3-5m3.
Specification of Natural Gas Buffer Tank of 2m3
Parameters' table:
| 1 | Type | DN1000 |
| 2 | Class of vessel | SL-I |
| 3 | Medium | Natural gas |
| 4 | Style | Vertical 、Columnar |
| 5 | Design pressure Mpa | 2.0 |
| 6 | Max. working pressure Mpa | 1.8 |
| 7 | Design temperature (℃) | 50 |
| 8 | Working temperature (℃) | -19－45 |
| 9 | Volume (m3) | 2.0 |
| 10 | Fixing mode | Outdoor & fixed |
